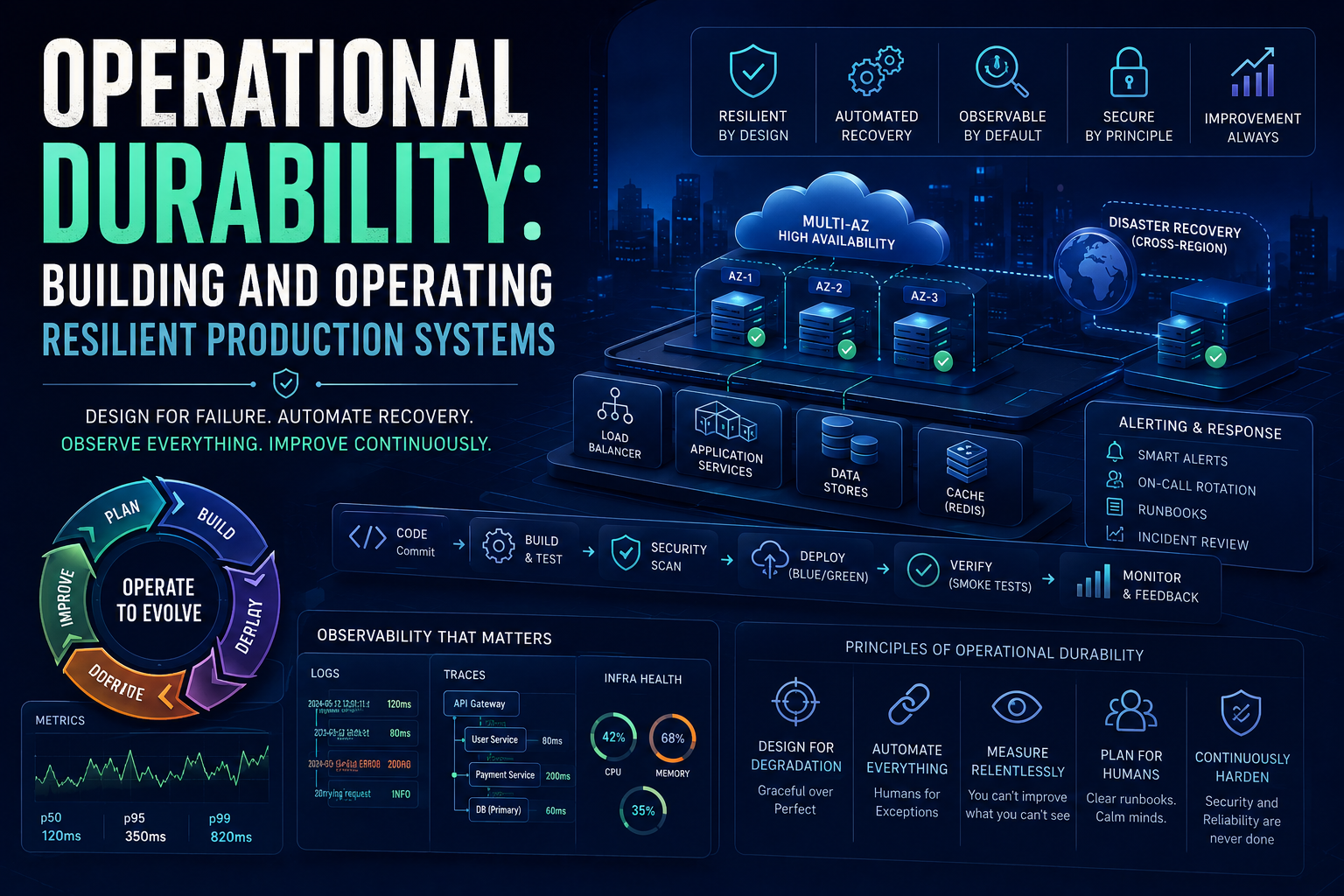

Operational Durability: Building and Operating Resilient Production Systems

High availability (HA) means your system stays up under normal operating conditions. Resilience means your system recovers predictably when it inevitably breaks-and integrates those failures into its evolutionary design.

Operating mission-critical infrastructure across high-stakes environments like fintech and aviation teaches a sobering lesson: infrastructure failures are deterministic realities, not anomalies. The goal is to design an architecture that gracefully degrades, self-heals, and provides clear visibility during a crisis.

1. System Redundancy and Disaster Recovery

Engineering Out the Single Point of Failure (SPOF)

True resilience requires eliminating single points of failure across all layers of the stack. Every layer must possess an explicit, degraded fallback mode to keep core functionality alive.

• Network: Employ multiple upstream transit providers with automated Border Gateway Protocol (BGP) failover.

• Compute & Data Tier: Distribute containerized application instances across separate Availability Zones (AZs). Use multi-AZ primary database configurations paired with asynchronous cross-region read replicas.

• Secrets & Config: Avoid raw runtime network dependencies on a centralized secrets vault. Safely cache credentials locally with brief Time-To-Live (TTL) values to ensure survivability if the vault experiences transient degradation.

Translating RTO and RPO into Architecture

Recovery Time Objective (RTO) and Recovery Point Objective (RPO) are architectural constraints that govern your entire storage and compute design.

2. Infrastructure-as-Code and State Configuration

Infrastructure as Code (IaC) is not merely a tool for speed; its real value lies in making your infrastructure reviewable, versioned, and reproducible.

    [Git Repository] ──(PR Review)──► [CI Build / OPA Policy Check]
           │
     (Merge Event)
           │
           ▼
     [GitOps Engine (ArgoCD / Flux)] ◄──(Continuous Drift Detection)──┐
           │                                                          │
     (State Reconciliation)                                           │
           │                                                          │
           ▼                                                          │
   [Production Environment] ──────────────────────────────────────────┘

• Declarative Engines (Terraform, OpenTofu, Pulumi): Use these to manage your core cloud topology.

• GitOps Reconciliation (ArgoCD, Flux): For Kubernetes environments, move away from push-based scripts. Use continuous reconciliation loops to match live infrastructure to your declared repository state, automatically overriding manual drift.

• Policy-as-Code: Integrate automated compliance checkers (e.g., Open Policy Agent, Sentinel) directly into the CI pipeline. If an infrastructure state change violates encryption or tagging rules, fail the deployment before it ever executes.

3. High-Velocity Release Management

Deployments are among the riskiest operational phases. Blue-green deployments eliminate deployment downtime by running two identical environments and switching traffic atomically at the routing layer.

1. Steady State (Blue Active):
   [Router / LB] ──────► [Blue Env (v1.0.0)] (Live Traffic)
                         [Green Env (Empty)]

2. Stage & Smoke Test:
   [Router / LB] ──────► [Blue Env (v1.0.0)] (Live Traffic)
             └─────────► [Green Env (v1.1.0)] (QA/Smoke Testing Only)

3. Atomic Switch (Cutover):
   [Router / LB] ──┐     [Blue Env (v1.0.0)] (Standby/Rollback Pool)
                   └───► [Green Env (v1.1.0)] (Live Traffic)

If your application metrics spike immediately post-cutover, you can instantly swing traffic back to the Blue environment. For systems where running duplicate infrastructure is cost-prohibitive, a canary release strategy-incrementally shifting traffic percentages ($1\% \rightarrow 10\% \rightarrow 100\%$)-is a highly effective compromise.

4. Container Orchestration & Low-Level Resilience

Operating containerized platforms like Kubernetes requires strict adherence to runtime constraints. Most cluster-wide incidents stem from misconfiguring basic pod settings.

Resource Boundary Discipline

Never deploy a service container without explicitly defining both resource requests (the guaranteed runtime floor) and limits (the absolute ceiling). Omitting these allows a single leaky worker process to starve neighboring containers on the shared node.

Probes and Budgets

• Readiness Probes: Design these to tell the router when a container is ready to accept user requests.

• Liveness Probes: Configure these purely to detect unrecoverable process deadlocks and trigger container restarts.

• Pod Disruption Budgets (PDBs): Always declare PDBs for highly available services. This prevents cluster automation from evicting too many container replicas simultaneously during routine cloud node maintenance.

5. Security & Secret Lifecycle Management

Hardcoded application credentials guarantee an eventual security incident. Protect your runtime using a centralized secrets vault combined with aggressive client-side caching.

TypeScript

// Production Vault Secret Retrieval Strategy with Defensive Short-TTL Caching
class SecretManager {
  private cache = new Map<string, { value: string; expiresAt: number }>();
  private readonly ttlMs = 300_000; // Enforce strict 5-minute cache shelf life

  public async getSecret(path: string): Promise<string> {
    const cached = this.cache.get(path);
    if (cached && cached.expiresAt > Date.now()) {
      return cached.value;
    }

    try {
      // Fetch directly from authenticated secure vault instance
      const secret = await vault.read(path);
      this.cache.set(path, {
        value: secret.data.value,
        expiresAt: Date.now() + this.ttlMs,
      });
      return secret.data.value;
    } catch (error) {
      logger.error({ msg: "Vault read failure. Escalating...", path, error });
      throw error;
    }
  }
}

Enforcing a short cache duration ensures that automated secret rotations (e.g., rotating database credentials every 90 days) propagate across your application fleet within minutes without requiring service restarts.

6. Advanced Configuration Engineering

Standard environment variables break down under enterprise scale. Robust architectures require a hierarchical configuration engine that separates code from system parameters.

TypeScript

class ConfigLoader {
  private config: Map<string, unknown> = new Map();

  public async load(): Promise<void> {
    this.loadDefaults();            // Layer 1: Base software defaults
    this.loadEnvVars();             // Layer 2: Environment overrides
    await this.loadFromService();   // Layer 3: Central dynamic store (Consul/etcd)
    this.loadLocalOverrides();      // Layer 4: Local testing overrides

    this.spawnWatchdog();
  }

  // Dynamic configuration watchdog loop
  private spawnWatchdog(): void {
    setInterval(async () => {
      const liveChanges = await this.pollConfigServiceChanges();
      for (const [key, value] of liveChanges) {
        this.config.set(key, value);
        logger.info({ event: 'config.runtime_reload', key, newValue: value });
      }
    }, 60000); // Poll for dynamic updates every 60 seconds
  }
}

By streaming dynamic configuration parameters, you can toggle feature flags, adjust operational rate limits, or modify connection pool sizes instantly in production without initiating a full software deployment cycle.

7. Operational Observability Over Raw Dashboards

Monitoring asks if a system is working; observability allows you to infer why it is broken by examining its outputs. Avoid messy, unorganized dashboards and invest early in structured telemetry:

[Image illustrating the three pillars of observability: Prometheus metrics for trends, structured JSON logs for context, and OpenTelemetry spans for distributed tracing]

• Metrics (Prometheus format): High-level operational awareness. Track system saturation, transaction volumes, and performance percentiles ($p50, p95, p99$).

• Structured Logs (JSON format): Machine-readable context. Every log line must contain uniform keys (trace_id, environment, user_id, error_code) to enable immediate filtering during an active incident.

• Distributed Tracing (OpenTelemetry): Trace single execution pathways as they travel through a complex web of independent services, queues, and database layers.

8. Incident Management and Alerting Discipline

Mitigate First, Root-Cause Later

When a production system is down, your priority is to stop the bleeding, not to write a patch. If an incident triggers post-deployment, immediately roll back. A rollback that completes in 5 minutes is structurally superior to trying to debug and write a code fix live under a 30-minute outage window.

Alerting Hygiene

Alert fatigue degrades on-call performance. If an engineer receives an alert that requires no immediate operational action, it isn't an alert-it's a graph.

🚨 CRITICAL ALERT TRIGGERED 🚨
----------------------------------------------------------------------
Service:       payment-gateway-processor
Metric:        p99 Latency = 3.42s (Breached SLA Threshold: > 2.00s)
Severity:      P0 (Immediate System Impact)
Impact Radius: 14% of API Authorization Attempts currently failing.
Runbook Link:  https://ops.internal/runbooks/payment-latency-triage
----------------------------------------------------------------------

Every alert must explicitly declare its severity level, point directly to an updated runbook, outline the overall blast radius, and provide the exact context needed to begin immediate mitigation.

Conclusion

Resilience is not an engineering asset you buy; it is an ongoing cultural and operational practice. True systemic stability begins with solid backups, requires automated infrastructure state management, and is proven through continuous chaos testing. Always ensure your technical runbooks are clear enough that an on-call engineer who has never seen your specific sub-system can successfully navigate a critical failure at 3:00 AM.
