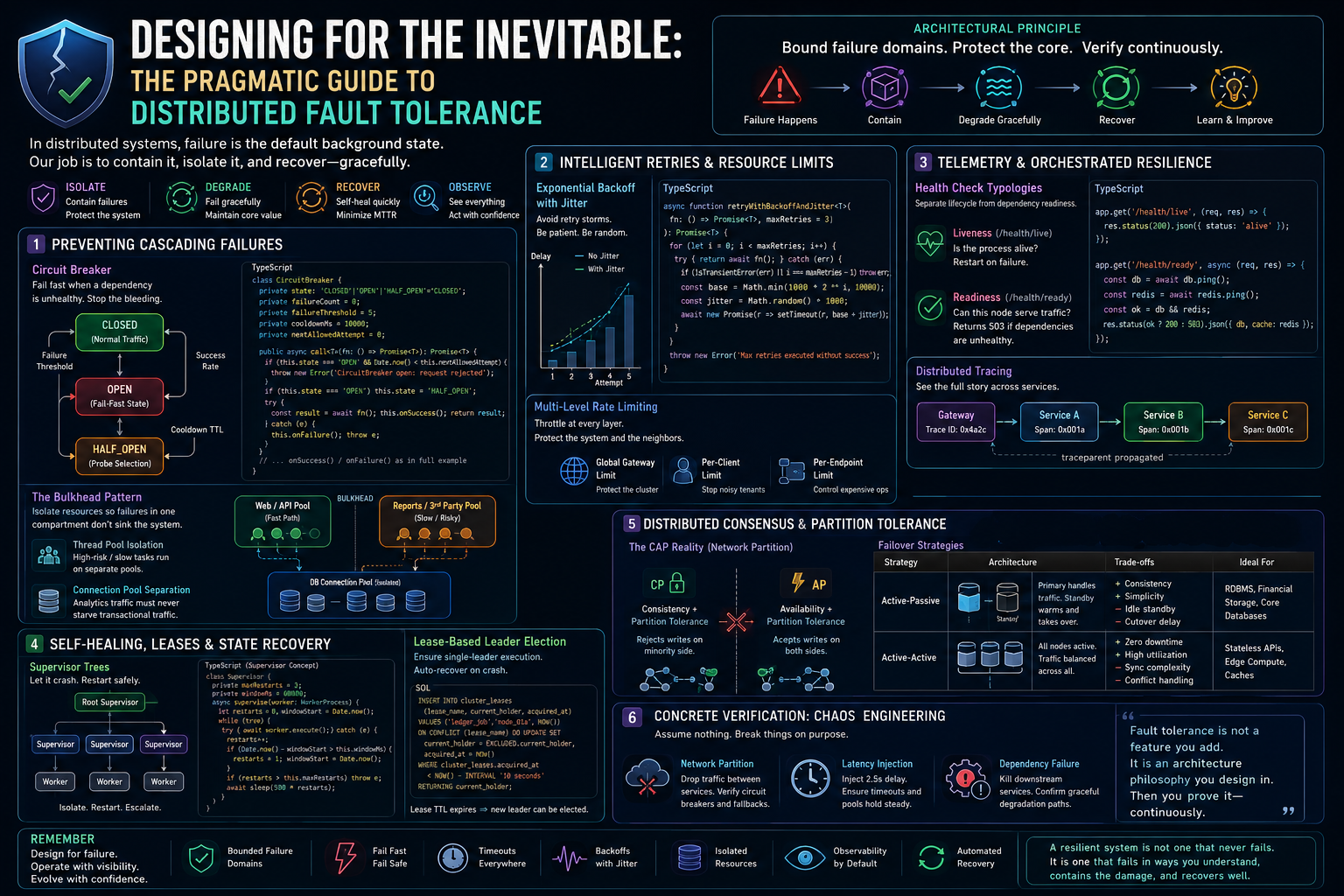

Designing for the Inevitable: The Pragmatic Guide to Distributed Fault Tolerance

In distributed systems, failure isn't an exceptional event-it is the default background state. Networks partition. Bare-metal hardware crashes. Downstream cloud dependencies timeout. The core question of distributed engineering is never whether your system will fail, but how gracefully it chooses to do so.

Fault tolerance is the deliberate art of containing failure blast radiuses, ensuring that a transient error in a non-critical sub-system never escalates into a cascading, system-wide outage.

1. Preventing Cascading Failures

Circuit Breakers

When an upstream dependency undergoes an outage, continuing to hammer it with traffic spikes your application's latency, exhausts local connection pools, and prevents the downstream service from recovering. A circuit breaker isolates these faults by failing fast once error thresholds cross a critical line.

                    ┌────────────────────────┐
                    │        CLOSED          │◄──────┐
                    │   (Normal Traffic)     │       │
                    └───────────┬────────────┘       │
                                │                    │
                        (Failure Threshold)   (Success Rate)
                                │                    │
                                ▼                    │
                    ┌────────────────────────┐       │
                    │         OPEN           │       │
                    │   (Fail-Fast State)    │       │
                    └───────────┬────────────┘       │
                                │                    │
                         (Cooldown TTL)              │
                                │                    │
                                ▼                    │
                    ┌────────────────────────┐       │
                    │       HALF_OPEN        │───────┘
                    │   (Probe Selection)    │
                    └────────────────────────┘

TypeScript

// Production Circuit Breaker Implementation State Pattern
class CircuitBreaker {
  private state: 'CLOSED' | 'OPEN' | 'HALF_OPEN' = 'CLOSED';
  private failureCount = 0;
  private failureThreshold = 5;
  private cooldownMs = 10000;
  private nextAllowedAttempt = 0;

  public async call<T>(fn: () => Promise<T>): Promise<T> {
    if (this.state === 'OPEN') {
      if (Date.now() < this.nextAllowedAttempt) {
        throw new Error('CircuitBreaker open: request rejected');
      }
      this.state = 'HALF_OPEN'; // Cool-off window hit; test dependency viability
    }

    try {
      const result = await fn();
      this.handleSuccess();
      return result;
    } catch (error) {
      this.handleFailure();
      throw error;
    }
  }

  private handleSuccess(): void {
    if (this.state === 'HALF_OPEN') {
      this.state = 'CLOSED';
      this.failureCount = 0;
    }
  }

  private handleFailure(): void {
    this.failureCount++;
    if (this.failureCount >= this.failureThreshold || this.state === 'HALF_OPEN') {
      this.state = 'OPEN';
      this.nextAllowedAttempt = Date.now() + this.cooldownMs;
    }
  }
}

The Bulkhead Pattern

Borrowed from nautical design, bulkheads segregate computing resources into strictly isolated domains. If a single compartment sustains a catastrophic leak, the containment prevents the ship from sinking.

• Thread Pool Isolation: Run high-risk or slow operations (e.g., PDF generation, third-party analytics calls) on separate execution pools so they can never consume core API runtime loops.

• Connection Pool Separation: The most violated resilience rule. Avoid letting a single monolithic connection pool serve both transactional requests and resource-heavy background queries. A slow analytics query must never block database access for active users.

2. Intelligently Handling Retries and Resource Limits

Exponential Backoff, Jitter, and Timeouts

Executing unmitigated, flat-interval retries against an already struggling upstream dependency creates a thundering herd phenomenon that deepens the outage.

To resolve this, scale delays exponentially and multiply by a random uniform factor (jitter) to desynchronize retry spikes.

TypeScript

async function retryWithBackoffAndJitter<T>(
  fn: () => Promise<T>,
  maxRetries = 3
): Promise<T> {
  for (let i = 0; i < maxRetries; i++) {
    try {
      return await fn();
    } catch (error) {
      if (!isTransientError(error) || i === maxRetries - 1) {
        throw error; // Immediately drop out on 4xx/validation errors
      }

      // Exponential Backoff with Random Jitter
      const baseDelay = Math.min(1000 * Math.pow(2, i), 10000);
      const jitter = Math.random() * 1000;

      await new Promise(resolve => setTimeout(resolve, baseDelay + jitter));
    }
  }
  throw new Error('Max retries executed without success');
}

Timeout Discipline: Never let a client call default to infinity. Implement explicit chain timeouts: outgoing calls down your internal service graph must possess progressively shorter timeout values than the outer incoming request. Pass deadline constraints across context layers via HTTP headers (e.g., standard W3C context propagation).

Multi-Level Rate Limiting

Rate limiting is as much a defense-in-depth fault tolerance pattern as it is a brute security mechanism. Implement throttling rules symmetrically across three tiers:

1. Global Gateway Limit: Hard ceiling protecting entire cluster resources from aggregate traffic exhaustion.

2. Per-Client Limit: Isolates and stops single noisy tenants or faulty loop-scripts from starving resources.

3. Per-Endpoint Limit: Imposes separate computational bounds (e.g., lowering boundaries for heavy indexing /search endpoints compared to simple /ping routes).

3. Telemetry and Orchestrated Resilience

Health Check Typologies

Orchestration systems rely on accurate health data to update routing paths. Your endpoints must follow a clear separation of concerns:

TypeScript

// Liveness Check: Is the runtime engine frozen or deadlocked?
app.get('/health/live', (req, res) => {
  res.status(200).json({ status: 'alive' });
});

// Readiness Check: Can this specific node safely process live consumer requests?
app.get('/health/ready', async (req, res) => {
  const dbStatus = await db.ping();
  const redisStatus = await redis.ping();

  const clearToServe = dbStatus && redisStatus;
  res.status(clearToServe ? 200 : 503).json({ db: dbStatus, cache: redisStatus });
});

Avoid Anti-Patterns: Never bundle an end-to-end multi-hop synthetic integration check down 15 dependency paths into a basic Kubernetes readiness probe. Under high cluster loads, this practice can induce false-positive node evictions, destroying availability.

Distributed Tracing

When handling requests that cross multiple asynchronous service contexts, standard sequential logs lose their coherence. Distributed tracing maps the path of execution across boundaries.

[Gateway Request Input] ──► (Generates Trace ID: 0x4a2c)
       │
       ├──► [Service A: Order Service] ─────► (Generates Span ID: 0x001a)
       │         │
       │   (Injects traceparent to header)
       │         │
       │         ▼
       └──► [Service B: Payment Engine] ────► (Generates Span ID: 0x001b, Parent: 0x001a)

By reading propagated trace headers, engineers can isolate anomalies immediately, shifting the diagnostic story from "the system is failing somewhere" to "Service B dropped a database connection because the connection pool was completely saturated by a running report process from Service C."

4. Self-Healing, Leases, and State Recovery

Erlang-Inspired Supervisor Trees

Adopting a "let it crash" philosophy means accepting that individual processes will experience unexpected error paths. Instead of attempting to trap every edge-case exception, build your system to fail fast and restart cleanly.

TypeScript

// Simplified Concept: Hierarchical Supervisor Worker Recovery Loop
class Supervisor {
  private maxRestarts = 3;
  private resetWindowMs = 60000;

  public async supervise(worker: WorkerProcess): Promise<void> {
    let restarts = 0;
    let windowStart = Date.now();

    while (true) {
      try {
        await worker.execute();
      } catch (crash) {
        logger.error({ msg: "Worker process crashed. Restarting...", error: crash });
        restarts++;

        if (Date.now() - windowStart > this.resetWindowMs) {
          restarts = 1; // Reset window bucket
          windowStart = Date.now();
        }

        if (restarts > this.maxRestarts) {
          logger.fatal({ msg: "Max restart threshold breached. Escalating to root supervisor!" });
          throw new Error("Systemic worker instability"); // Escalate failure up the tree
        }

        await new Promise(res => setTimeout(res, 500 * restarts)); // Backoff before reload
      }
    }
  }
}

Lease-Based Leader Election

For singleton orchestration tasks (like cron queues, ledger aggregations, or cache warmers), you must enforce single-leader execution to prevent concurrency bugs.

SQL

-- Atomic, Lease-Based Database Leader Election Pattern
INSERT INTO cluster_leases (lease_name, current_holder, acquired_at)
VALUES ('ledger_aggregation_job', 'node_worker_01a', NOW())
ON CONFLICT (lease_name)
DO UPDATE SET
  current_holder = EXCLUDED.current_holder,
  acquired_at = NOW()
WHERE cluster_leases.acquired_at < NOW() - INTERVAL '10 seconds'
RETURNING current_holder;

By enforcing an explicit Lease Time-To-Live (TTL), if node_worker_01a drops off the network or experiences a sudden kernel panic, the lock expires cleanly within 10 seconds, allowing a standby instance to safely claim leadership.

5. Distributed Consensus and Partition Tolerance

The CAP Reality and Network Partitions

When a network partition splits a cluster into isolated halves, the CAP Theorem dictates your architectural response:

• CP (Consistency / Partition Tolerance): The minority partition rejects incoming writes to preserve a single, undeniable source of truth (e.g., Etcd, Consul).

• AP (Availability / Partition Tolerance): Both sides of the split partition accept local reads and writes, choosing to reconcile divergent data states later using conflict resolution rules (e.g., DynamoDB, Cassandra).

Production Failover Strategies

Your failover pattern choice depends on whether your service tier handles application state or raw stateless compute:

6. Concrete Verification: Chaos Engineering

You can never verify the effectiveness of a fault-tolerant architecture through static code analysis alone. True resiliency must be continuously validated under live stress patterns via Chaos Engineering.

• Staged Injection Experiments: Introduce controlled faults into a staging environment before running tests in production.

• Network Partition Emulation: Use low-level networking tools to drop traffic passing between Service A and Service B. Verify that your circuit breakers open instantly and that client-facing code cleanly executes fallback loops.

• Latency Injection: Inject a synthetic $2.5\text{-second}$ delay into downstream data pipelines to ensure local application thread pools do not exhaust themselves waiting for long-tailed responses.

Conclusion

Building fault-tolerant systems is ultimately about designing bounded failure domains. By implementing patterns like circuit breakers, bulkheads, exponential backoffs, and strict timeout boundaries, you guarantee that an individual component failure remains isolated-preventing a minor transient issue from snowballing into a full-scale, system-wide incident.
